3Phase 32A Type 2 inlets Male EV Charger Socket With lock DSIEC2f-EV32S

Products Mode:

Rated Current: 16A 32A Three Phase

Operation Voltage: 240V AC

Insulation Resistance: >1000MΩ(DC500V)

DC Max Charging Power: <50K

AC Max Charging Power: 2000V

Working temperature: -30°C ~+50°C

Contact impedance: 0.5m Max

Certificate: CE,TUV Approved

Plug Type: SAE J1772/IEC 62196-2

Application: AC Home Charging

Color: Costomized

Inquery Now

Prev Next

Description

IEC 62196-3 Combo 1 Socket 150A 200A CCS Type 1 inlets DC Fast Charging Socket V2-DSIEC3j-G-EV200S32

16A 32A Electric Vehicle Charging Socket, EV Type 2 IEC62196-2 Connector,AC Charging Inlet Socket

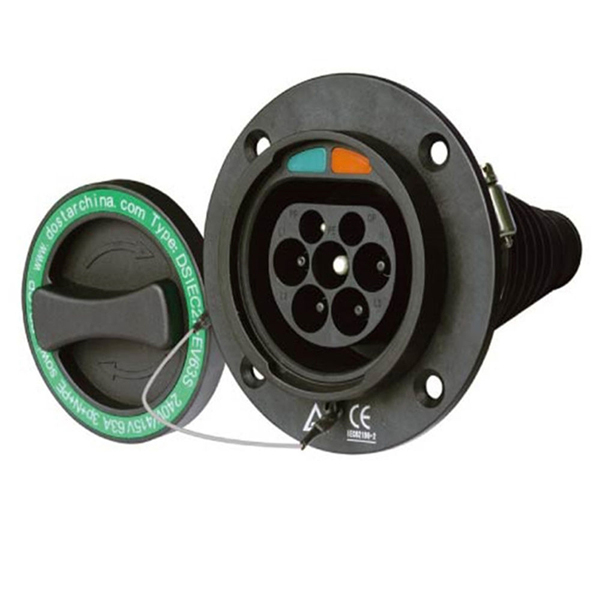

This Type 2 AC Charging Socket Vehicle Side, also Know as AC Charging Inlet Socket, can be installed on the Type 2 Electric Vehicle.

Features:

1. This Type 2 AC Charging Socket is with protection cover, safe for front install.
2. This Type 2 AC charging inlet socket is CE, TUV and RHOS Certificated, is safe and reliable.

Detailed dimensions

Features

1. Meet 62196-2 IEC 2010 SHEET 2-IIf standard

2. Nice appearance，with protection cover,support front installation

3. Safety pins insulated head design to prevent accidental diirecrt contact with staff

4 Excellent protection performance,protection grade IP44(working condition)

Mechanical properties

1. Mechanical life : no-load plug in/pull out＞5000 times

2. Coupled insertion force:>45N<80N

Electrical Performance

1. Rated current：16A/32A

2. Operation voltage： 250V/415V

3. Insulation resistance：＞1000MΩ（DC500V）

4. Terminal temperature rise：＜50K

5. Withstand Voltage：2000V

6. Contact Resistance： 0.5mΩ Max

Applied Materials

1. Case Material: Thermoplastic,flame retardant grade UL94 V-0

2. Pin：Copper alloy,silver + thermoplastic on the top

Environmental performance

1. Operating temperature: -30°C~+50°C

Model selection and the standard wiring

Model

Rated current

Cable specigication

DSIEC2f-EV16S

16A Single phase

16A Three phase

3 X 2.5mm²+ 2 X 0.75mm²

5 X 2.5mm²+ 2 X 0.75mm²

DSIEC2f-EV32S

32A Single phase

32A Three phase

3 X 6mm²+ 2 X 0.75mm²

5 X 6mm²+ 2 X 0.75mm²
